Philippines 69KV HDG Octagonal Steel Pole for 30FT 35FT Distribution
Specification
| Height (ft) | Thickness (mm) | Butt Diameter (mm) | Tip Diameter (mm) | Design Load (kg) | Yield Stress (MPA) | Zinc Coating (microns) |
| 25 | 2.5 | 152 | 120 | 300 | 345 | 86 |
| 30 | 3.0 | 226 | 127 | 500 | 345 | 86 |
| 35 | 3.0 | 248 | 127 | 500 | 345 | 86 |
| 40 | 3.0 | 317 | 127 | 500 | 345 | 86 |
| 45 | 4.0 | 328 | 127 | 750 | 345 | 86 |
Description
1. Philippines 25FT ~ 45FT Distribution pole are standard according to NEA National Bid. But besides above, we can also supply the poles based on customer's request. And different specification poles with different price. On the other side, the price is according to each pole weight. The weighter the expensive. So to save the cost, our factory has the professional technical team to design the practical poles and save the cost for our clients.
But to design the practical poles for customers use, normally we need customer to provide us some parameter, like as following :
- Pole top design load
- Where is the position of the load , the distance from the top
- The wind Speed
- How will the wire distribute
- Pole type with Burial Type or Base Plate type
- The connections mode, use slip joint or flange
- and others we can further more discuss when we need.

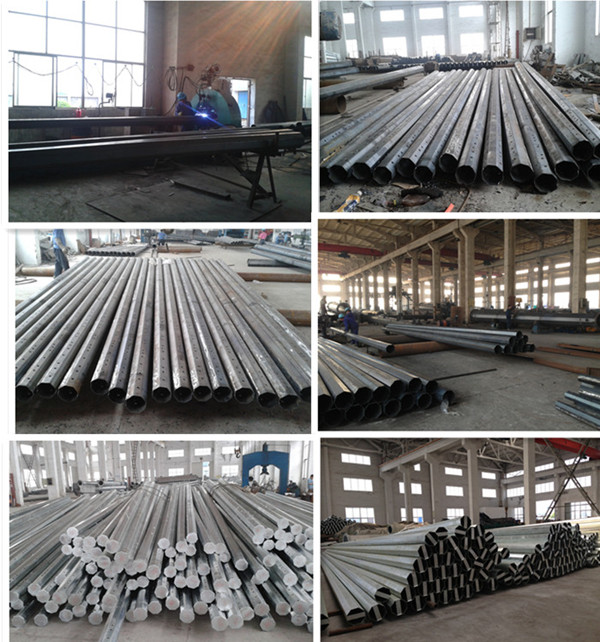

Production Process
- Raw material test
- Cutting
- Bending
- Welding (longitudinal )
- Dimension verify
- Flange welding
- Hole drilling
- Calibration
- Deburr
- Galvanization or powder coating or Bituminous painting
- Recalibration
- Packages
| Best Service: --At Jiangsu Baojuhe Science and Technology Co.,Ltd., we always providing
our clients with great quality products and superior Customer service. |
| Quick Lead Time.--We inform our cistomers the exact delivery time when they plac the order and then strictly following on when we agreed. |
| Unbeatable Prices-- We continuously strive to find ways of reducing our production costs, and saving the cost. |
| Unbeatable Quality --we always supply good quality also leading products to all of our customers. |
| Brand Awareness -- The goal of any strong brand is achieve a level of awareness that instills the
idea of quality and value into all of your customers. |
| Special Offers. -- In order to maintain our competitive edge, we are constantly running special
offers on our products, consumer goods, and design services. Contact our sales team to see how we can
help you save a lot of money. |
| Special support.-- we have a policy term to support our VIP customers for products also payment. |
Terms and Conditions
1. Price Term: EXW, FOB, CFR or CIF.
Ø EXW: Poles Cost
Ø FOB : Pole Cost + Land Transportation + Fee on Port
Ø CFR : Pole Cost + Land Transportation + Fee on Port + Sea Freight
Ø C I F : Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.
2. MOQ: One 40FT Container.
3. Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Delivery Time: 15 working days per container after PI / drawing / prepayment confirmed.
5. Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom,or according to clients’ requirement.
