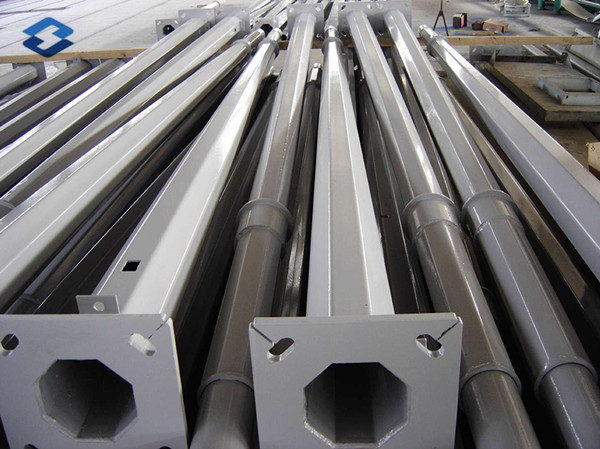

Octagonal Zinc Galvanized Lighting Steel Pole with Base Plate and Single Arm
Material
Applied to the material of general-purpose steel GB/T1591-2008, Q235, Q345 used in China.
Q235 equipment to SS400, ASTM A36. Min Yield Stress 235 Mpa.
Q345 equivalent to S355JR. Gr 50. Min Yield Stress 345 Mpa.
Usually we use Q235 for lighting poles.
Specifications
| Height | 5 m to 12m |
| Application | Road ,Street, Highway, etc |
| Shape | Octagonal |
| Lamp Power | 20 W- 400 W (HPS/MH)
220V (+-10%) /50Hz |
| Arm | Single |
| Lighting Fixture | IP 65 |
| Working Atmosphere of Lighting Fixture | -35℃~+45℃ |
| Surface Treatment | Hot dip galvanized with ASTM A 123, color as request. |
| Safety | Against earthquake of 8 grade |
| Wind Speed | 160 Km/Hour |
| Min Yield Strength | 355 mpa |
| Min Ultimate Tensile Strength | 490 mpa |
| Max ultimate tensile strength | 620 mpa |
| Standard | ISO 9001 |
| Thickness | 3mm |
Description:
Our lighting steel poles are non-standarded. We usually manufacture the poles according to cliens' various drawings or detailed specifications. So please offer us the drawing first and then we can give you the exact quotation after calculating the weight accroding to the drawing. Of course, we can give you some advice if you are a new buyer and have no drawing.
Manufacturing
We check the raw material after purchasing the steel sheet. We do the carbon, silicon and sulfur test in our lad room. If the steel sheet is unqualified, we'll return them.
Our factory owns advanced production lines and machines including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All insure us to produce steel poles with best quality.
Our welding penetration rate is above 95%.

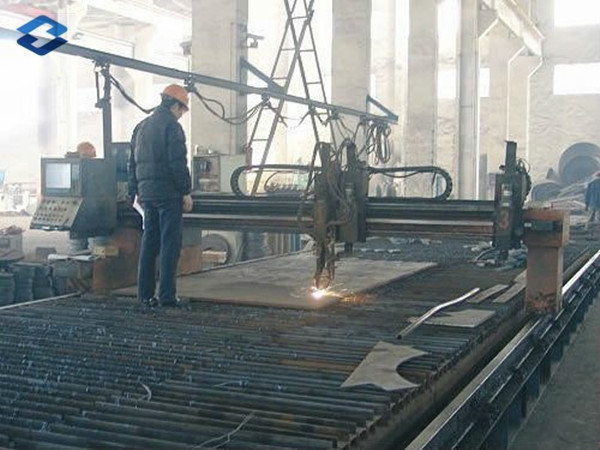

After the fabrication process as cutting plate, bending, forming, automatic welding, drilling holes, we get poles checked before galvanized, hot dip galvanized and powder coating and finally we get poles checked according to client's requirements.
We do the galvanization thickness test, load test and physical mechanical test in our factory. If clients request, we can do a third-party test like SGS, CCIC test for our clients.
Delivery

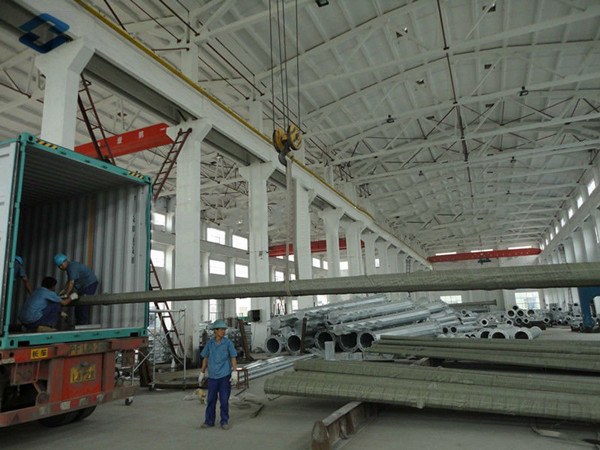

Our nearest port is Shanghai Port. It's only 30 minutes' driving from our factory to Shanghai Port. We normally use plastic to pack the poles and use 40HQ containers to delivery. Our Port limit weight for a 40HQ is 26 tons.
Factory Profile
Founded in 2005, Jiangsu Baojuhe Science and Technology Co.,Ltd (Previous name Jiangsu Bosheng Steel Poles Co.,Ltd.) is located in Heqiao Town Industrial Zone, Yixing District, Wuxi City, Jiangsu Province, China.
Baojuhe is the specialized manufacturer of various steel poles and steel components including street lighting poles, electric power poles, traffic signal poles, flag poles, wind power poles and microwave communication towers, etc.
Through Shanghai Port, which is one of the largest ports in China, we export poles to South America, Middle East, Africa, Australia, Philippines and other countries.
FAQ:
1. Port of Loading: Shanghai, China
2. Price term: EXW,FOB,CFR AND CIF.
3. Payment Term: 30%TT in deposit, 70%TT before shipment. Or LC.
4. Delivery: Based on your order quantity. Normally 15 days after receiving your deposit.
